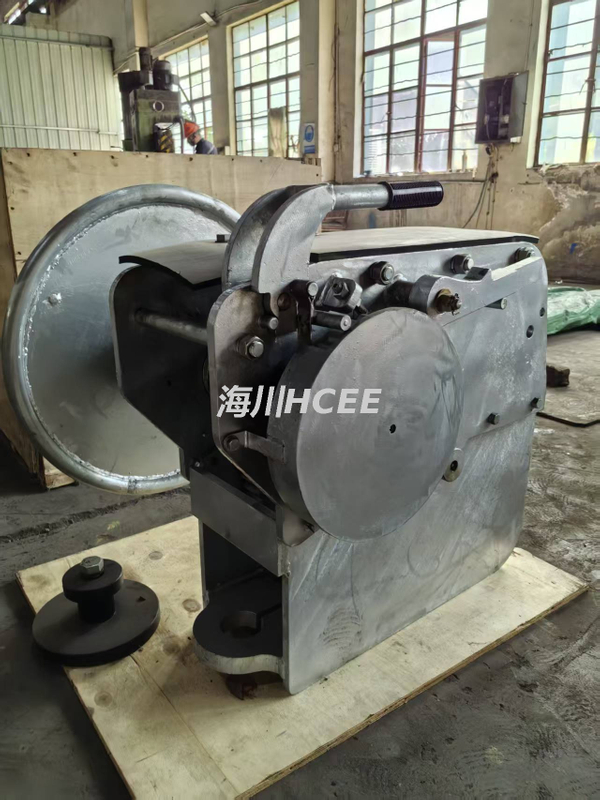

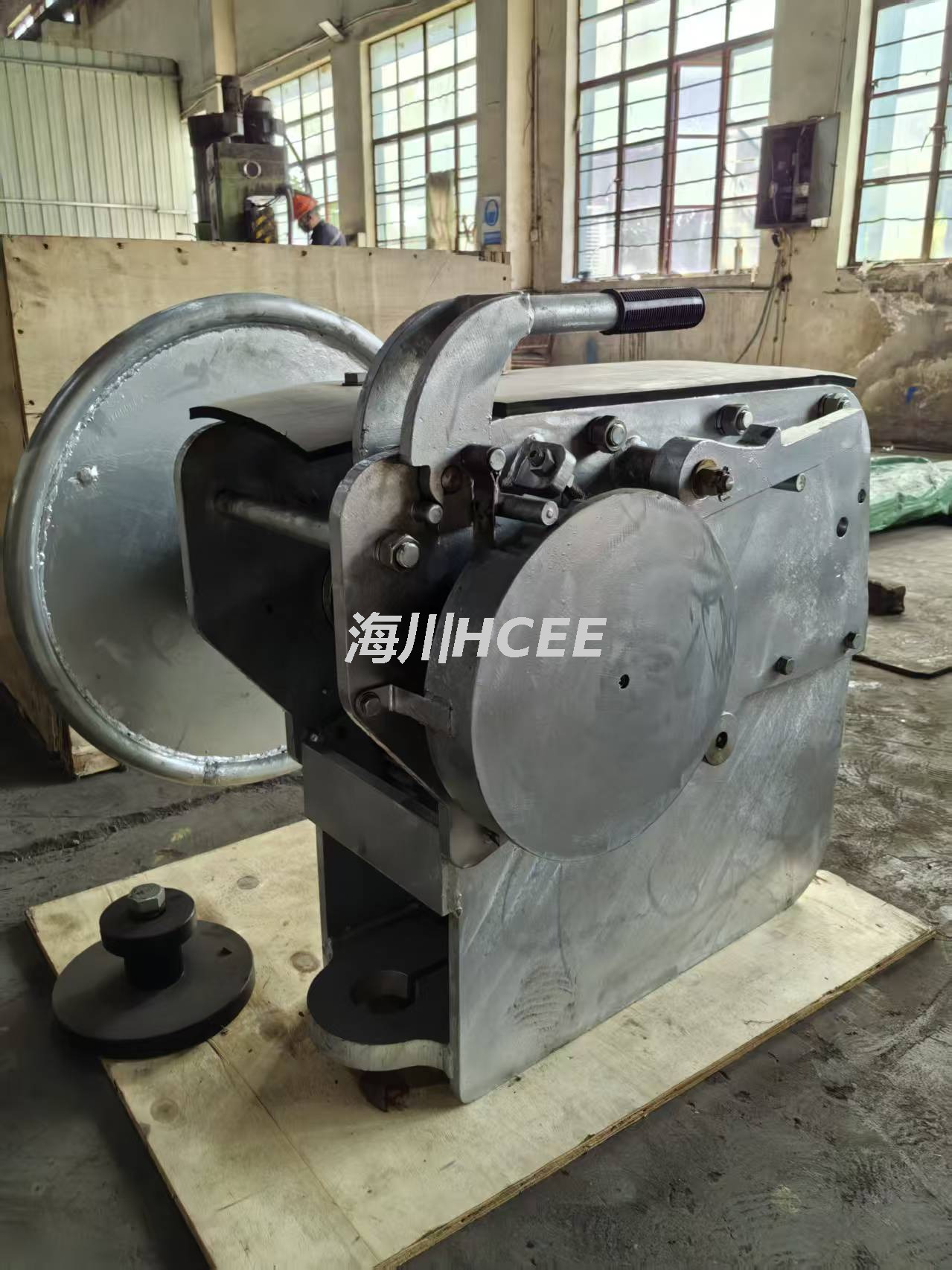

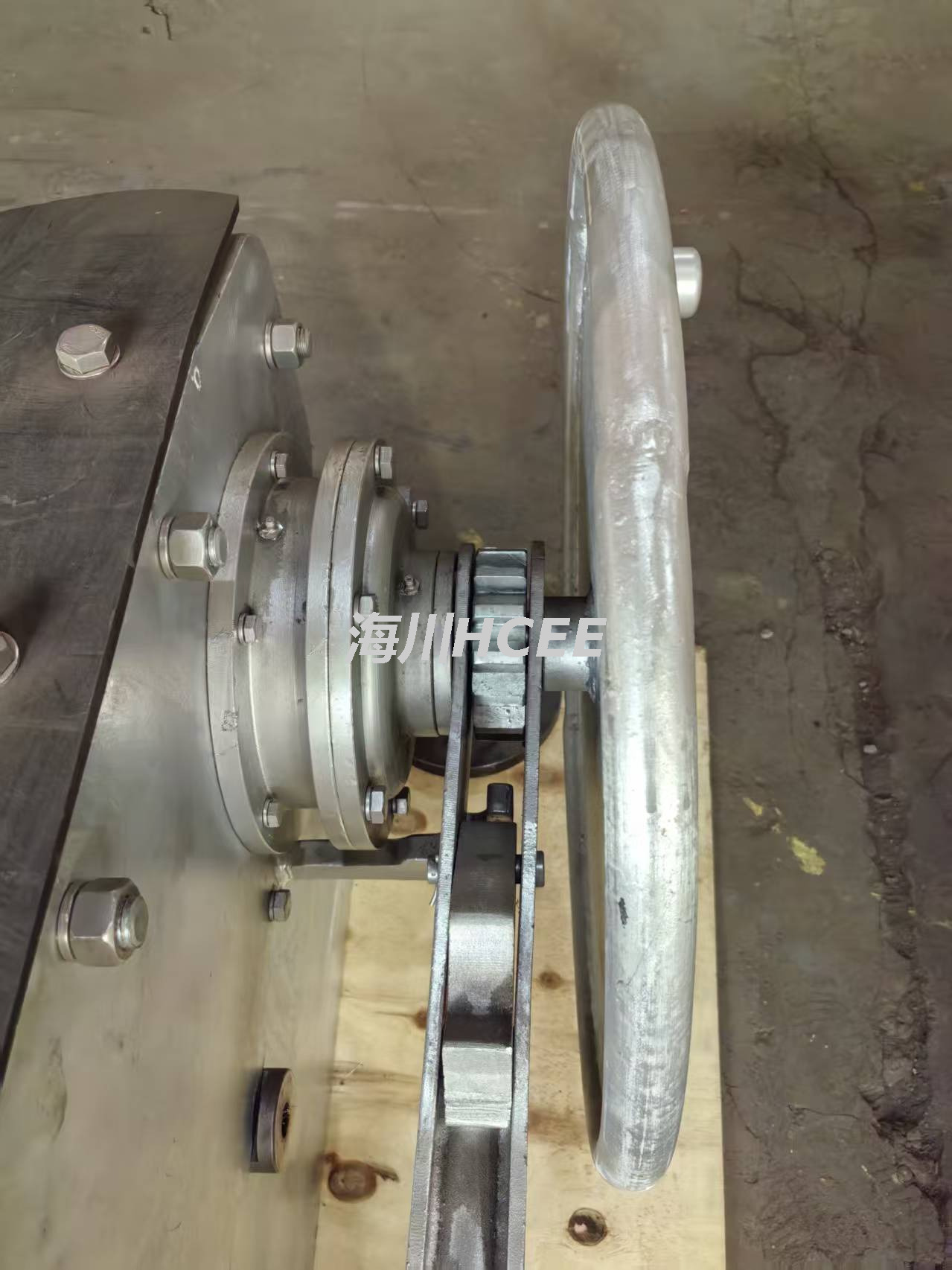

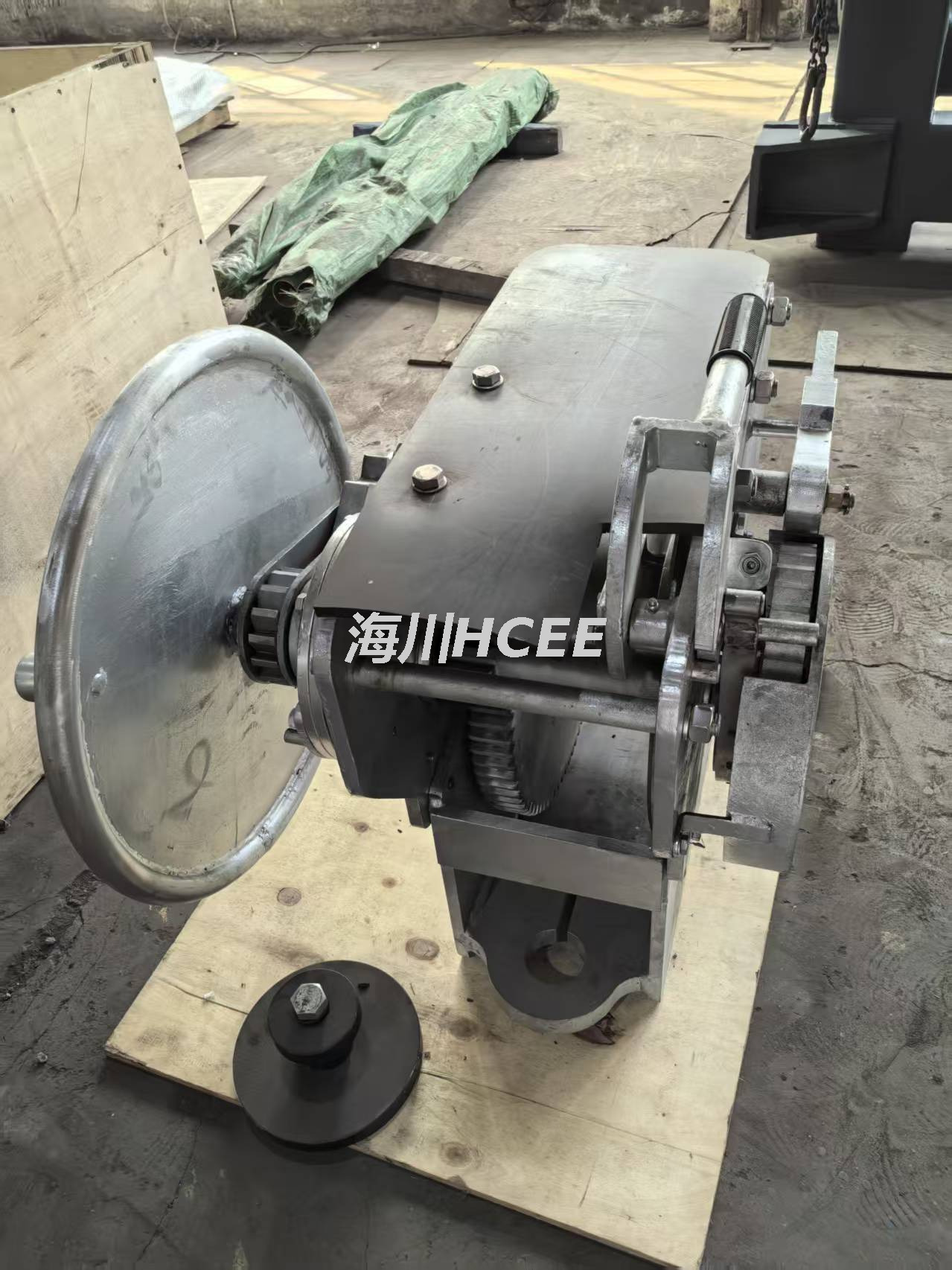

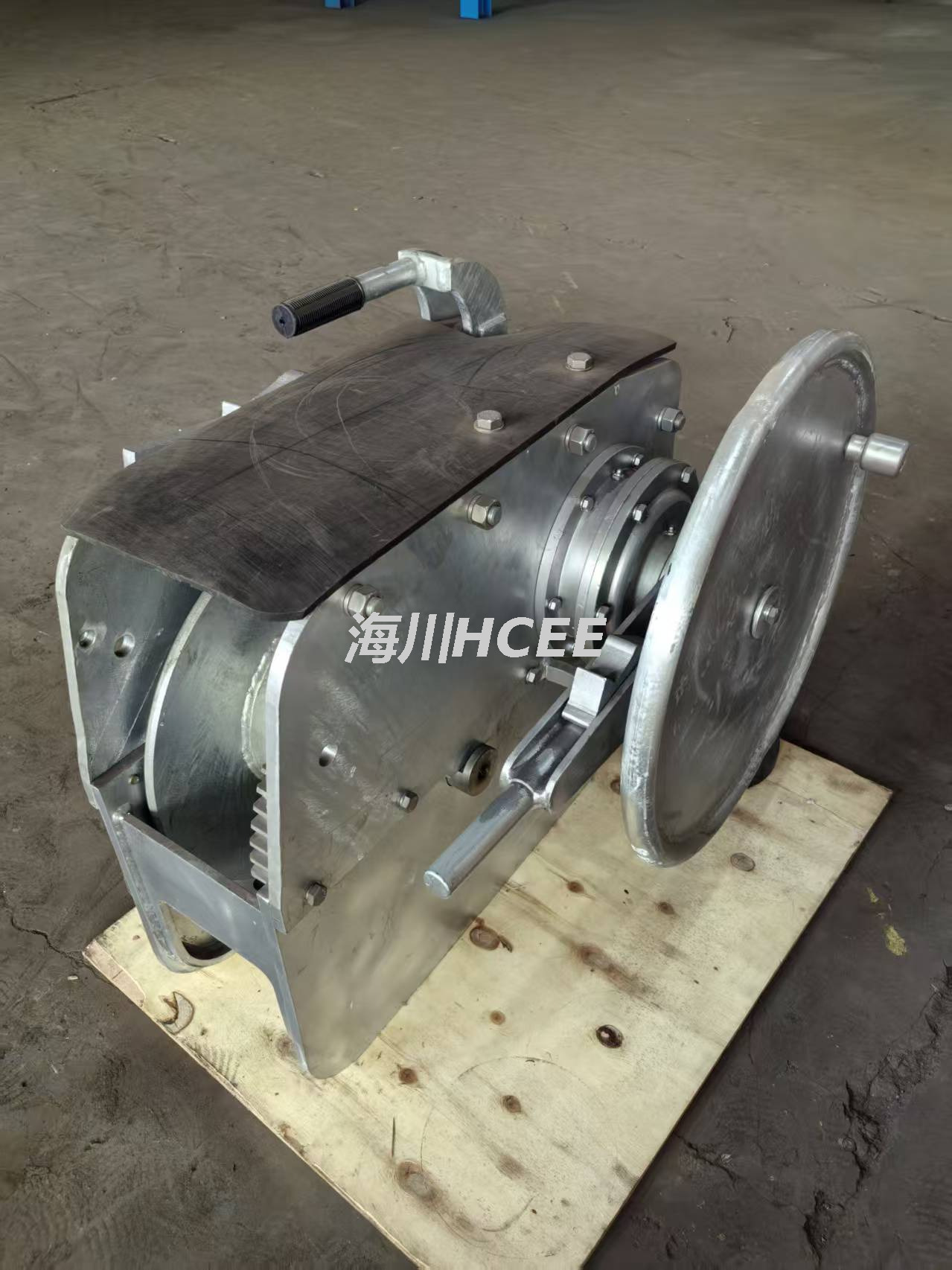

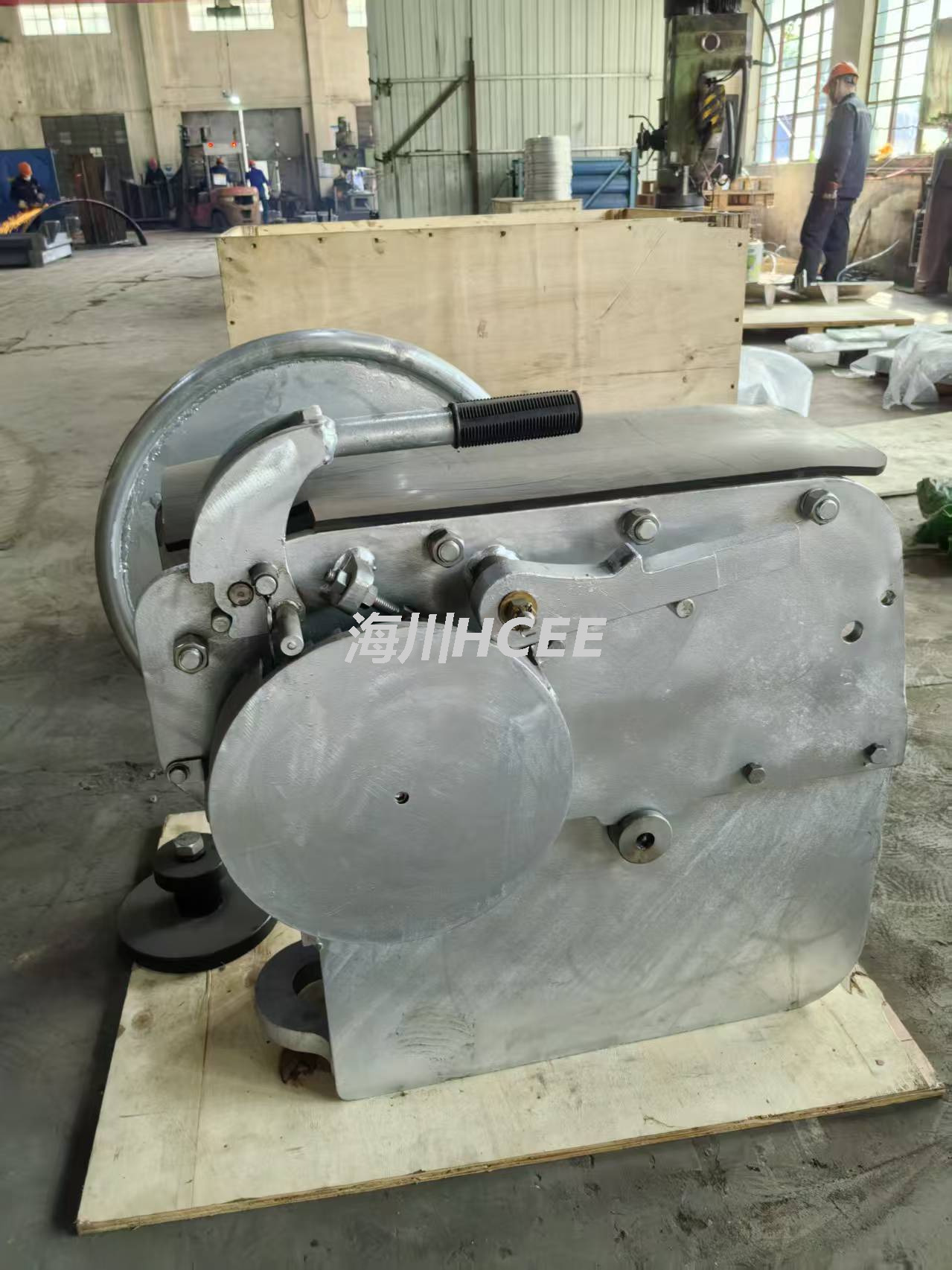

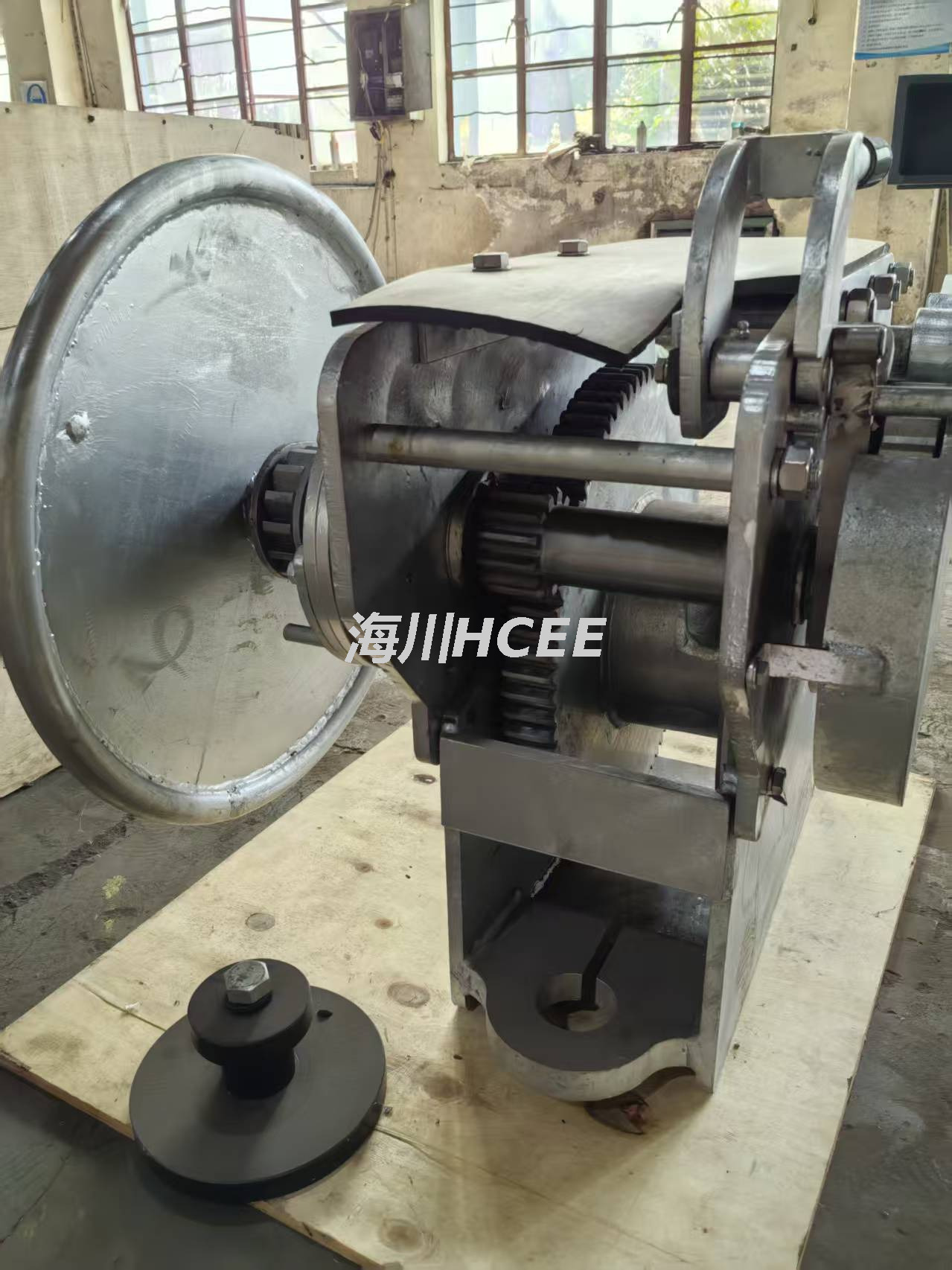

DF-545 40 TON PLANETARY GEAR MOUNT WINCH
| Safe working load | 10t |
| Static strength test load | 400KN |
| Wire rope | Φ25.4 |

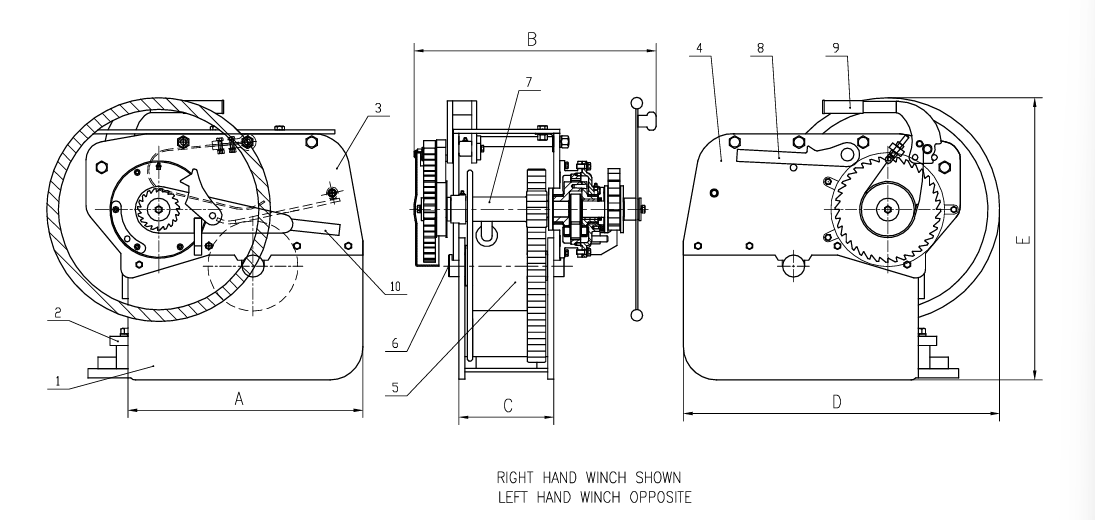

| MODEL No. | A | B | C | D | E | WT.(lbs) | Remark |
| DF-545-RH/LH-P | 25 1/4" | 26" | 10 1/4" | 34" | 30 1/4" | 906 | P=Painted |
| DF-545-RH/LH-G | 25 1/4" | 26" | 10 1/4" | 34" | 30 1/4" | 906 | G=Galvanized |
| NO. | Part Name | QTY | Material | Remark |
| 1 | Base Assy | 1 | Steel | |
| 2 | Base Assy | 1 | Steel | |
| 3 | Side plate upper | 1 | Steel | |
| 4 | Side Plate upper | 1 | Steel | |
| 5 | Drum assy | 1 | Assembly | |
| 6 | Drum Shaft | 1 | Steel | |
| 7 | Gear Shaft Assy | 1 | Assembly | |
| 8 | Hold Assy | 1 | Assembly | |
| 9 | Brake Assy | 1 | Assembly | |
| 10 | Rachet Assy | 1 | Assembly |
