In the maritime industry, ensuring the safety and integrity of vessels is paramount. Among the critical components contributing to this safety are specialized doors designed to prevent water ingress: watertight doors and weathertight doors. While they may appear similar, their functions, locations, and design specifications differ significantly. This article delves into the distinctions between these two types of doors, emphasizing the importance of weathertight doors in marine applications.
Watertight doors are engineered to prevent the passage of water in both directions when subjected to a head of water. They are designed to withstand continuous submersion and are typically located below the waterline, such as in shaft tunnels, ballast tanks, and bow thruster compartments. These doors are crucial for maintaining a vessel's buoyancy and stability during flooding scenarios.

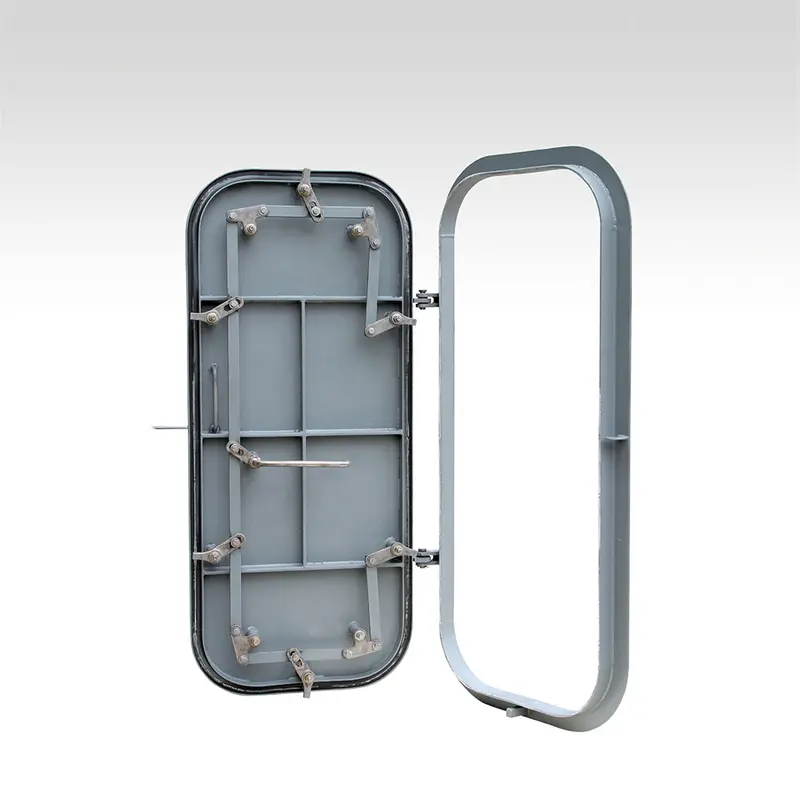

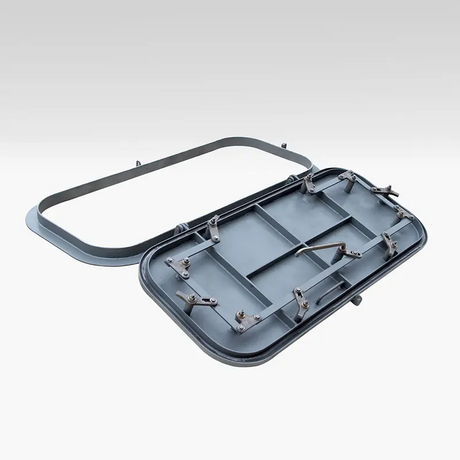

Weathertight doors, on the other hand, are designed to prevent water ingress from the outside under normal sea conditions. They are located above the waterline and can withstand brief submersion, such as from waves washing over the deck. These doors are essential for protecting the vessel's interior spaces from weather elements like rain, spray, and wind.
The following table summarizes the primary differences between watertight and weathertight doors:
| Feature | Watertight Door | Weathertight Door |
|---|---|---|
| Location | Below the waterline | Above the waterline |
| Water Pressure | Withstands pressure from both sides | Withstands pressure from outside only |
| Submersion Capability | Designed for continuous submersion | Designed for brief submersion |
| Purpose | Prevent flooding between compartments | Prevent ingress of weather elements |
| Testing Requirements | Water pressure and flushing tests | Flushing tests only |
| Regulatory Standards | SOLAS, IMO regulations | ICLL, IMO regulations |
Both watertight and weathertight doors are constructed using robust materials such as steel, aluminum, or stainless steel to ensure durability and resistance to corrosion. The choice of material often depends on the specific application and environmental conditions the door will face.
The effectiveness of these doors largely depends on their sealing mechanisms. Watertight doors utilize compression gaskets and are designed to maintain a seal under significant water pressure. Weathertight doors also use gaskets but are primarily designed to prevent water ingress from rain and spray rather than full submersion.
Watertight doors undergo rigorous testing to ensure their integrity under pressure. This includes water pressure tests where the door is subjected to a specified head of water to check for leaks. Additionally, flushing tests are conducted using high-pressure water jets to simulate wave impacts.
Weathertight doors are primarily tested using flushing tests to ensure they can withstand water spray and brief submersion without leaking. These tests simulate conditions such as waves washing over the deck.
Weathertight doors play a crucial role in maintaining the safety and integrity of a vessel. They are essential for:
Protecting interior spaces from weather elements, ensuring the safety and comfort of the crew and passengers.
Maintaining the vessel's structural integrity by preventing water ingress that could lead to corrosion or damage to equipment.
Complying with international safety regulations, such as those set by the International Maritime Organization (IMO), which mandate the use of weathertight doors in specific areas of a vessel.
Deck fittings are integral components on a vessel's deck, including items like cleats, chocks, and bollards, which are used for mooring and securing the vessel. The integration of weathertight doors with deck fittings is essential to ensure seamless operation and safety. Properly installed weathertight doors prevent water ingress through deck openings, complementing the function of deck fittings in maintaining the vessel's stability and security.
Understanding the differences between watertight and weathertight doors is vital for the design, construction, and operation of marine vessels. While both types of doors serve to prevent water ingress, their specific applications, design requirements, and testing standards differ significantly. Weathertight doors are particularly important for protecting above-deck areas from weather elements, ensuring the safety and comfort of those on board. Their integration with deck fittings further enhances a vessel's operational efficiency and safety.
By adhering to the appropriate standards and ensuring proper installation and maintenance, marine operators can ensure that both watertight and weathertight doors effectively contribute to the vessel's overall safety and integrity.
