In marine deck design and mooring system planning, the choice of mooring fitting has a direct impact on rope handling efficiency, deck safety, line control, and operational reliability. Whether the project involves a workboat, cargo vessel, harbor craft, offshore unit, or port facility, choosing the wrong fitting can lead to difficult deck operations, inefficient line arrangement, or unnecessary wear on mooring ropes.
Among the most common options, single bitts, double bitts, and kevels are all widely used, but they are not interchangeable in every situation. Each type is designed around a different balance of load capacity, rope arrangement, operating convenience, and installation purpose.
This article explains the differences between single bitts, double bitts, and kevels, and helps shipyards, marine contractors, and project buyers evaluate which option is better for specific applications.
Mooring fittings are not just hardware mounted on the deck. They shape the way mooring lines are led, secured, tensioned, and released during daily vessel operations.
The right fitting can help improve:
line control during berthing and unberthing
safe rope arrangement on deck
working efficiency for deck crews
load transfer to deck structure
long-term durability under repeated mooring cycles
The wrong fitting can create problems such as:
poor rope lead angles
rope overlap or slipping
limited holding space for multiple lines
difficult operation in narrow deck areas
higher local stress on the deck foundation
For that reason, mooring fitting selection should always be considered as part of the overall deck operation plan, not just as a component purchase.
A single bitt is a mooring fitting built around one vertical post mounted to the deck or supporting structure. It provides a simple and compact point for securing a mooring line.
Single bitts are often chosen where:
only one line needs to be handled at a time
deck space is limited
the vessel layout requires a compact fitting
the mooring arrangement is relatively straightforward
Because the structure is simple, single bitts are often used in applications where space efficiency and basic functionality are more important than handling multiple lines simultaneously.
One upright post
Compact footprint
Simple rope securing method
Suitable for lighter or more straightforward mooring arrangements
Often used on smaller vessels or in limited deck spaces
A single bitt can be effective and economical, but it offers less flexibility than a double bitt when more complex rope handling is required.

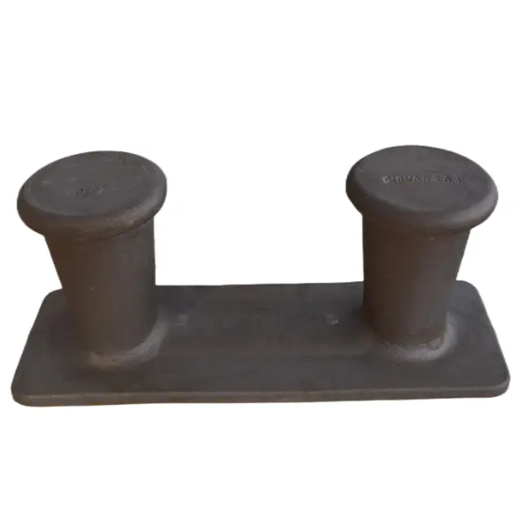

A double bitt consists of two vertical posts connected through a common base or structural support. This arrangement creates more space for line turns and gives operators better control when handling mooring ropes.
Double bitts are commonly used where:
larger mooring loads are involved
better rope separation is needed
multiple lines may be handled in one area
deck crews need more flexibility during securing operations
Compared with a single bitt, a double bitt generally offers improved operational control and more balanced line handling. It is widely used on commercial vessels, harbor craft, and marine structures where mooring loads and working frequency are higher.
Two upright posts
Better rope distribution and control
More suitable for heavier-duty operations
Allows more flexible line arrangement
Common in commercial and industrial marine applications
In many marine projects, the double bitt is seen as the more versatile option for general-purpose mooring.
A kevel is a low-profile mooring fitting, usually designed with broad projecting arms or horns rather than tall vertical posts. It is used to secure mooring lines while maintaining a relatively low deck obstruction.
Kevels are commonly selected when:
low-profile deck fittings are preferred
rope guidance must follow a specific deck path
deck space and crew movement need to be carefully managed
the application benefits from quick line belaying around projecting arms
Compared with bitts, a kevel usually has a lower overall height and a different rope securing geometry. This makes it useful in certain vessel layouts, especially where tall protruding fittings are undesirable.
Lower profile than most bitts
Side arms or horns for securing rope
Useful where deck clearance matters
Often chosen for specific line directions and compact deck layouts
Can reduce interference with deck movement in some areas
Although kevels are practical in many designs, they are not always the best choice for heavy-duty or multi-line handling compared with double bitts.
The biggest differences between single bitts, double bitts, and kevels appear in both structure and daily operation. Their shape directly influences how the rope is led and how the load is transferred into the deck.
Single bitt: one upright post, simple structure, compact installation
Double bitt: two upright posts, improved line control, larger footprint
Kevel: low-profile form with projecting arms, reduced vertical obstruction
Single bitt: good for straightforward mooring with limited line complexity
Double bitt: better for controlled handling, heavier loads, and more flexible rope arrangement
Kevel: useful where low height and specific rope belaying patterns are desired
| Feature | Single Bitt | Double Bitt | Kevel |
|---|---|---|---|
| Basic structure | One vertical post | Two vertical posts | Low-profile body with arms/horns |
| Deck footprint | Small | Medium to large | Usually compact to medium |
| Rope handling flexibility | Limited | High | Moderate |
| Suitable for multiple lines | Limited | Better | Depends on size and layout |
| Load distribution | More concentrated | More balanced | Depends on structure and foundation |
| Deck obstruction | Medium | Medium to high | Low |
| Best for | Simple mooring points | General commercial mooring | Low-profile deck arrangements |
This comparison shows that the “better” fitting depends on whether the project values simplicity, flexibility, or low deck profile.
One of the most important factors in selection is how the fitting performs during actual rope handling. A mooring fitting must not only withstand load, but also allow safe and efficient rope operation.
A single bitt works well when one line can be belayed cleanly and the rope lead is straightforward. However, it offers less separation when handling multiple turns or more than one line in the same area. This may make operations less efficient on busy decks.
A double bitt provides better rope organization because the two posts allow more controlled wrapping and line distribution. It is easier for deck crews to manage mooring lines with improved separation, especially in commercial or high-frequency operations.
This is one reason double bitts are often preferred for:
larger vessels
repeated mooring cycles
stronger line tensions
more complex line arrangements
A kevel can be effective where line direction is predictable and the vessel design benefits from a lower fitting profile. It can support practical rope securing in compact deck areas, but operational suitability depends heavily on the rope type, lead angle, and working method.
Load is never just about fitting strength. Buyers also need to evaluate:
deck reinforcement requirements
base plate or foundation design
weld or bolt connection details
line angle during service
expected peak and repeated mooring loads
A fitting that looks strong enough on paper may still perform poorly if the deck structure or rope lead is not matched correctly.
| Consideration | Single Bitt | Double Bitt | Kevel |
|---|---|---|---|
| Single-line operation | Good | Good | Good |
| Multi-line handling | Limited | Better | Moderate |
| Control during heavy-duty use | Moderate | Stronger | Application-dependent |
| Compact deck use | Good | Fair | Good |
| Crew-friendly rope arrangement | Basic | Better | Moderate |
| Low-profile requirement | Fair | Fair | Best |
| Heavy commercial mooring | Sometimes suitable | Often preferred | Depends on design |
There is no universal answer for every vessel or project. The better option depends on the deck layout, vessel size, mooring load, and operating routine.
A single bitt is often the better choice when:
the deck area is limited
the mooring point handles only one line
the vessel is smaller or has simpler deck operations
buyers want a compact and economical fitting
the load requirement is moderate and clearly defined
Typical applications may include:
smaller boats and service vessels
secondary mooring points
limited-space deck zones
simple utility marine applications
A double bitt is often the better choice when:
the vessel handles larger mooring loads
line control is important
several rope turns or more flexible securing are needed
the project is commercial or industrial in nature
deck crews need more operational efficiency
Typical applications may include:
cargo vessels
tugboats
barges
offshore support vessels
shipyard and terminal projects
heavy-duty working decks
A kevel is often the better choice when:
the project requires a lower-profile fitting
deck traffic or deck clearance is a concern
the rope lead direction suits the kevel geometry
the vessel layout does not favor taller bitts
the application values compact integration
Typical applications may include:
certain small and medium vessel layouts
side deck mooring areas
deck zones with movement constraints
projects where low protrusion is desirable
In practice, many buyers do not ask which fitting is “best” in general. They ask which fitting is best for the exact mooring point, rope arrangement, and deck condition.
For shipyards, marine contractors, and procurement teams, choosing between a single bitt, double bitt, or kevel usually comes down to a combination of technical and operational criteria.
If the mooring point is intended for one simple line, a single bitt may be sufficient. If more control or multiple turns are expected, a double bitt is often the safer choice.
The direction of the mooring line strongly affects fitting performance. Kevels may work very well in some lead configurations, but less effectively in others. Rope path should always be checked against the fitting geometry.
If the fitting is located in a walking route or a tight operating area, a lower-profile solution such as a kevel may be more practical. If space allows and rope handling is more demanding, a double bitt may deliver better performance.
For vessels or facilities with frequent berthing cycles, ease of rope handling becomes more important. In such cases, double bitts often provide better long-term operating convenience.
Buyers should review not only fitting dimensions and material, but also:
rated load
fabrication standard
base design
reinforcement needs
compatibility with project drawings and class requirements
A good mooring fitting should support long-term service in a corrosive marine environment. Surface treatment, material selection, weld quality, and fabrication consistency all matter in project evaluation.
An experienced supplier should not only provide a catalog model, but also help evaluate:
vessel type
line size
deck arrangement
operating habit
installation condition
project specification requirements
That is often the difference between simply buying a fitting and choosing the right mooring solution.
Single bitts, double bitts, and kevels all play important roles in marine mooring systems, but each one serves a different operational purpose.
A single bitt is a practical choice for compact layouts and straightforward mooring points. A double bitt is often the preferred solution for commercial and heavy-duty operations because it offers better rope control, improved flexibility, and more balanced handling. A kevel is especially useful where a low-profile fitting is required and the deck layout benefits from reduced obstruction.
For shipyards, marine contractors, and project buyers, the best choice comes from evaluating rope handling needs, deck space, load conditions, and working efficiency, rather than selecting only by appearance or habit. The right mooring fitting can improve both deck safety and long-term operational performance.
A single bitt has one vertical post, while a double bitt has two. Double bitts generally offer better rope handling flexibility and are more suitable for heavier-duty or more complex mooring operations.
A kevel is used as a low-profile mooring fitting for securing ropes on deck. It is often selected where deck clearance, compact layout, or reduced protrusion is important.
In many cases, a double bitt is better for heavy-duty applications because it provides improved line control and more flexible rope handling. Final selection still depends on load rating and deck structure.
Not in every case. A kevel is better in some low-profile deck arrangements, while a bitt may be better for heavier or more flexible mooring operations. The right choice depends on the vessel and application.
A single bitt is a good choice when the mooring arrangement is simple, deck space is limited, and only one line needs to be handled at a specific point.
Shipyards often choose double bitts because they are versatile, practical for commercial vessels, and easier for deck crews to use in demanding mooring operations.
Buyers should compare load requirements, rope lead angles, number of lines handled, deck space, crew operation needs, installation conditions, and corrosion resistance.
