When lifting heavy plates, safety is paramount. Did you know that the angle of your lifting sling can affect the clamp's performance? Horizontal plate clamps are essential for securely lifting metal plates, but understanding the correct side angle is crucial.
In this article, we'll explore the maximum side angle for horizontal plate clamps and why it matters for both safety and lifting efficiency. You'll learn how different angles impact the clamp’s ability to hold and lift heavy loads effectively.

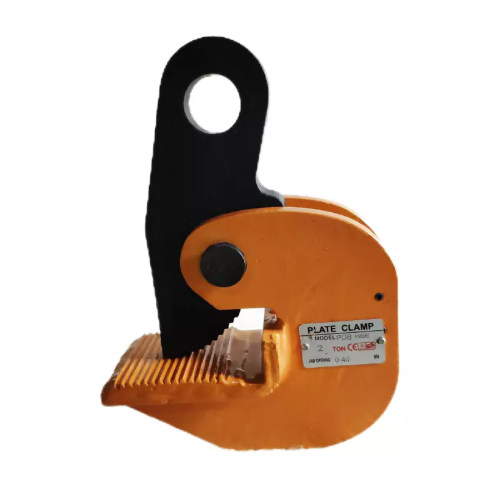

Horizontal plate clamps are essential tools used to lift heavy plates safely and efficiently. They are designed to securely hold and lift plates in a horizontal position, which is particularly useful in industries like construction and metal fabrication. These clamps are commonly used for lifting steel and other materials without causing damage.
Key components of horizontal plate clamps include:
Lifting Shackle: The point where the lifting hook attaches to the clamp.
Spring: Provides initial tension and ensures the clamp stays in place.
Teeth: Grip the surface of the plate, providing a secure hold.
Jaw Mechanism: The part that opens and closes to lock the plate in place.
These clamps are specifically designed for horizontal lifting, making them different from vertical plate clamps. They are used in pairs and connected by a suitable sling to ensure a balanced lift.
The operation of horizontal plate clamps relies on the interaction of several components. Once placed on the plate, the clamp's teeth engage with the surface. As the weight of the load increases, the gripping force of the teeth automatically strengthens, ensuring a firm hold.
Teeth: The teeth bite into the surface of the plate, providing a secure grip. The stronger the load, the deeper the teeth penetrate.
Spring Mechanism: The spring helps maintain the clamp's grip as the weight increases, ensuring it doesn't slip off the plate during lifting.
This combination of components allows horizontal plate clamps to lift large, heavy plates while minimizing the risk of slippage and damage to the plate.
Horizontal plate clamps typically operate best within a side angle range of 60 degrees to 90 degrees. This range ensures optimal lifting strength and efficiency. Exceeding these angles can increase the load on the clamps, making them less effective and potentially dangerous.
60 degrees: This is often considered the preferred angle for safe lifting.
90 degrees: Some manufacturers allow angles up to 90 degrees, typically for double-leg slings.
Beyond these angles, the clamp's grip can weaken, putting the load at risk.
The angle between the sling legs plays a critical role in how the load is distributed. When the angle is wide, more load is placed on the clamps, potentially reducing their ability to securely hold the plate.
Load Distribution: A wider angle means the load is less evenly distributed, leading to higher pressure on the clamps.
Grip Strength: The more the angle widens, the less gripping force the clamps provide, as the load shifts.
Adjusting the angle correctly helps maintain the lifting capacity and minimizes risks during lifting.
Exceeding the recommended side angle can cause a variety of problems, including slippage and damage to the load or equipment.
Slippage: A clamp may lose its grip, causing the plate to fall.
Damage to the Load: Uneven lifting forces can lead to deformation or scratches on the plate.
For example, lifting a plate at an angle of 120 degrees or more significantly reduces the clamp's ability to safely hold the load, increasing the chances of an accident.
To ensure safe lifting with horizontal plate clamps, always follow these best practices:
Select the Correct Angle: The angle between the sling legs should be between 60 and 90 degrees for optimal safety. This ensures proper load distribution and reduces the risk of slippage.
Maintain a 90-Degree Angle for Double-Leg Slings: Always use a double-leg sling when lifting horizontal plates, and ensure the included angle is at least 90 degrees to maintain lift stability.
Use at Least Two Clamps: Never lift a plate horizontally with fewer than two clamps. Using just one clamp can lead to imbalance and increase the risk of the load slipping.
Each manufacturer provides specific guidelines for using horizontal plate clamps safely. Always refer to the manufacturer’s instructions to ensure compliance with their recommendations:
NSW Government: Recommends a maximum angle of 60 degrees for safe lifting.
PROlift®: Some models allow up to 90 degrees for double-leg slings but caution against exceeding these angles to prevent overloading the clamps.
These instructions help maintain safety and lifting capacity.
The geometry of the sling plays a crucial role in controlling the lifting angle:
Sling Leg Angles: The angle between the sling legs directly affects the overall angle and load distribution. A wider angle means more load on the clamps.
Choosing the Right Sling: Select a sling that matches the plate size and weight. The wrong sling can cause excessive strain on the clamps, reducing their grip.
Consequences of Improper Sling Angles: Using an improper sling angle can lead to unbalanced lifting, increasing the risk of the load slipping or damaging the clamp.
The length of the plate plays a significant role in determining the safe side angle for lifting. Longer plates require more careful handling to avoid stress on the clamps.
Plate Size and Side Angle: The larger the plate, the greater the risk of it sagging or bending, which increases the load on the clamps. As the plate length increases, it becomes harder to maintain a safe lifting angle.
Using Multiple Clamps: For longer plates, it’s essential to use multiple clamps. This ensures a more balanced load distribution and prevents sagging, which can reduce the overall lifting capacity and safety.
The thickness and hardness of the plate can impact how effectively the clamps grip and lift.
Plate Thickness: Thicker plates generally require a more robust clamp to maintain grip. Plates that are too thin may cause the clamp to lose its grip because the teeth don’t have enough material to latch onto.
Material Hardness: Horizontal plate clamps are designed to handle materials up to 30 HRC hardness. Harder materials, like high-carbon steel, can wear down the clamp teeth more quickly, making it difficult for them to maintain a secure grip.
Regular inspection is crucial to ensure the safe and effective use of horizontal plate clamps. Here’s what to check:
Teeth: Inspect for wear or chips. Chipped or worn teeth can reduce grip strength, making the clamp less effective.
Spring and Pins: Check for deformation or damage. Springs should maintain tension, and pins should not show signs of bending or wear.
Overall Condition: Before each lift, ensure there are no cracks, rust, or loose parts. Damaged clamps should be removed from service.
Cleaning and lubricating the clamp regularly also helps maintain its performance. Keep moving parts clean and lubricated, but never lubricate the teeth as this can reduce grip.
To avoid side angle problems, always inspect the sling angles before use:
Adjusting Sling Angles: Regularly check that the sling legs form the proper angle (60 to 90 degrees). Adjust them if necessary to ensure even load distribution.
Operator Training: Proper training helps operators maintain correct angles and avoid unsafe lifting practices. A well-trained operator can adjust angles and equipment as needed to prevent accidents.
Understanding and following the maximum side angle for horizontal plate clamps is crucial for safe lifting. Using angles between 60 to 90 degrees ensures optimal clamp performance and load stability. For safe operation, always use at least two clamps, check sling angles, and follow manufacturer guidelines. Proper maintenance and operator training are essential to improve lifting efficiency and prevent accidents.
A: The recommended side angle for horizontal plate clamps is between 60 and 90 degrees. Angles exceeding this range can reduce clamp effectiveness and safety.
A: Horizontal plate clamps should be inspected regularly, at least every 1-4 weeks, depending on usage, to ensure they are free from wear or damage.
A: Horizontal plate clamps can lift multiple plates, but caution is needed. For larger or flexible plates, use multiple clamps and a spreader bar to ensure balance.
