As a premier manufacturer and supplier of heavy-duty lifting components, we engineer premium customized steel wire rope sheaves designed for rigorous industrial applications. Engineered for volume procurement and specialized projects, these sheaves ensure seamless lifting operations, minimizing friction and maximizing wire rope longevity. Our production facilities are equipped to handle exact specifications, ensuring every unit integrates flawlessly into your existing mechanical architecture.
Engineered for heavy load lifting and complex rigging systems
Fully customizable dimensions to match specific project requirements
Manufactured from high-grade steel for exceptional structural integrity
Direct-from-factory supply ensuring competitive procurement advantages

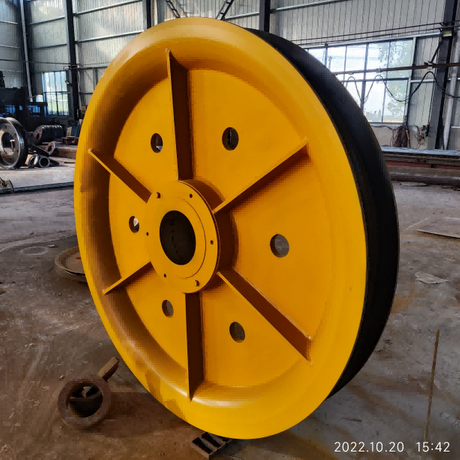

Step into the realm of uncompromising industrial strength with our customized steel wire rope sheaves. When you run your hand along the meticulously machined groove, you feel the cold, unyielding density of premium steel, hardened to withstand the most punishing lifting environments. These sheaves are not just components; they are the beating heart of your lifting apparatus, designed to hum with a quiet, reassuring resonance as heavy wire ropes glide seamlessly through their precisely contoured channels. The vibrant, industrial-grade yellow coating catches the light, signaling a robust defense against rust, salt spray, and the biting degradation of harsh weather conditions.
Every lifting operation demands absolute reliability, and our sheaves deliver by solving the critical challenge of equipment downtime. By significantly reducing the abrasive friction between the wire rope and the pulley groove, these sheaves prevent premature wear and catastrophic snapping. Whether installed on a towering maritime crane exposed to the relentless ocean breeze or deep within a subterranean mining shaft echoing with the clatter of heavy machinery, these pulleys maintain their structural integrity. The smooth, vibration-free rotation translates into safer lifts, smoother mechanical operations, and a profound sense of confidence for operators managing loads that weigh thousands of kilonewtons. Experience the tactile assurance of superior craftsmanship, where every dimension is carved with CNC precision to ensure flawless integration into your heavy machinery.
Product Name | Customized Steel Wire Rope Sheave for Lifting Pulley |
Product Type | Pulley Lifting Sheave / Wire Rope Sheave |
Material | Steel (Customizable: Carbon Steel, Alloy Steel, Stainless Steel) |
Manufacturing Process | Forging / Casting / CNC Precision Machining |
Standard | Customized / OEM / ODM |
SWL (Safe Working Load) | 2.45 - 980 KN |
TL (Test Load) | 4.9 - 1960 KN |
Wire Dia. | 20 - 50 mm |
Surface Treatment | Groove Surface Quenching / Galvanized / Anti-rust Coating |
Bearing Type | Bronze Bushed / Finished Bore / Shielded Bearings |
MOQ | 1 pc |
Place of Origin | Jiangsu China |
Packing | Plywood Case |
Delivery Time | 25 Days |
Our lifting sheaves are engineered to elevate your operational efficiency while drastically reducing maintenance overhead. By focusing on structural resilience and dimensional accuracy, we provide components that integrate flawlessly into complex machinery.
Friction-Optimized Grooves: The meticulously machined rope grooves are tailored to match your specific wire rope diameter, providing a snug fit that prevents lateral slipping and minimizes abrasive wear on the rope fibers.
High-Load Capacity: Capable of handling Safe Working Loads (SWL) up to 980 KN, these pulleys are built to support immense weight without deformation, ensuring stability during critical lifting phases.
Vibration-Damping Rotation: Equipped with premium bearing configurations, the sheaves rotate with a fluid, silent grace, absorbing operational shocks and preventing microscopic fractures in the surrounding lifting assembly.
Weather-Defiant Coating: The thick, tactile anti-rust coating acts as an impenetrable shield against moisture, chemical exposure, and saline environments, preserving the core steel's integrity for years of continuous use.
Understanding that no two lifting projects are identical, we offer a comprehensive suite of engineering solutions. From the initial metallurgical selection to the final dimensional verification, our manufacturing ecosystem is built around fulfilling exact client specifications.
We source only premium, high-yield steel—including robust carbon steel, resilient alloy steel, and corrosion-resistant stainless steel—to form the foundation of our sheaves. Utilizing advanced integral forging or precision casting techniques, followed by rigorous CNC machining, we eliminate internal voids and structural weaknesses. This results in a component that exhibits extraordinary impact resistance and tensile strength, securing the safety of your lifting operations from the molecular level up.
Our OEM and ODM capabilities are designed to adapt to your unique engineering blueprints. We offer precise customization of bore sizes, outer diameters, and groove profiles to perfectly accommodate wire ropes ranging from 20mm to 50mm in diameter. This bespoke approach ensures our sheaves seamlessly integrate into non-standard lifting equipment, cranes, and specialized rigging setups.
To combat the relentless friction of heavy wire ropes, the groove surfaces undergo high-frequency quenching, achieving a formidable hardness of HRC45-55. This targeted hardening process extends the lifespan of your wire ropes by two to three times. Complementing this is our robust surface finishing—whether galvanized or coated in industrial anti-rust treatments—guaranteeing long-lasting protection in highly corrosive marine, port, or mining environments.
Safety is not just a metric; it is an absolute guarantee. Our sheaves are engineered to withstand Test Loads (TL) up to a staggering 1960 KN. Before leaving our facility, every single unit undergoes stringent 100% Ultrasonic Testing (UT) and Magnetic Particle Testing (MT) to detect hidden flaws. Coupled with comprehensive hardness and dimensional checks, our internationally compliant processes provide the ultimate safety endorsement for high-risk hoisting tasks.
The rotational dynamics of a sheave are dictated by its bearings. We offer highly adaptable bearing configurations to suit your specific operational speeds and loads. Choose from resilient bronze bushings for low-speed, high-load scenarios, finished bores for secondary on-site machining, or high-precision shielded bearings for smooth, high-speed applications. This versatility makes them ideal for overhead cranes, gantry cranes, elevators, marine rigging, and offshore drilling platforms.
We understand the urgency of industrial procurement. With an accommodating Minimum Order Quantity (MOQ) of just 1 piece and a rapid 25-day delivery cycle, we help you optimize inventory and reduce project delays. Every sheave is meticulously treated with anti-rust oils and securely packed in heavy-duty, export-grade plywood cases. This shock-absorbent packaging ensures your components survive turbulent transoceanic voyages and arrive in pristine, ready-to-install condition.
Selecting the right manufacturing partner is critical to the safety and efficiency of your heavy-duty operations. We bring decades of metallurgical expertise and precision engineering to the table, ensuring that every component you source from us is a testament to industrial excellence.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide direct access to factory-level pricing, transparent production schedules, and immediate technical support, streamlining your procurement pipeline.
Uncompromising Traceability: From raw steel ingots to the final painted sheave, every step of our manufacturing process is documented and traceable, ensuring absolute accountability and consistent batch-to-batch quality.
Agile Production Capacity: Whether you require a single, highly specialized prototype or a large-scale volume order for a fleet of cranes, our scalable production lines adapt to your volume requirements without sacrificing precision.
Dedicated Engineering Support: Our team of mechanical engineers collaborates directly with your technical staff, offering expert guidance on material selection, groove profiling, and bearing integration to optimize your specific lifting system.
Below are detailed answers to common technical inquiries regarding our customized steel wire rope sheaves. If you have specific engineering questions, our technical support team is ready to assist with tailored solutions.
To ensure absolute precision, we require technical drawings detailing the outer diameter, bore size, groove radius, hub width, and the specific diameter of the wire rope (between 20-50mm). Information regarding the intended Safe Working Load (SWL) and operational environment (e.g., marine, high-temperature) is also crucial for recommending the appropriate steel grade and surface treatment.
High-frequency surface quenching hardens the specific area where the wire rope makes contact with the sheave, typically reaching HRC45-55. This significantly reduces the wear and tear on both the sheave and the wire rope. A hardened groove prevents the rope from biting into the steel, ensuring smooth tracking, reducing friction-induced heat, and extending the operational lifespan of your expensive wire ropes by up to three times.
Yes, absolutely. For offshore, marine, or chemical plant applications, we highly recommend our specialized anti-corrosion treatments. Beyond standard industrial paint, we offer deep galvanization and heavy-duty marine-grade epoxy coatings. Additionally, we can manufacture the sheaves from specialized Stainless Steel or apply specific sealants to the bearing housings to prevent saltwater ingress.
Our safety verification is exhaustive. We conduct physical load testing up to the specified Test Load (TL), which ranges from 4.9 to 1960 KN depending on the model. Furthermore, we utilize non-destructive testing (NDT) methods, including Ultrasonic Testing (UT) to check for internal voids and Magnetic Particle Testing (MT) for surface micro-fractures, ensuring the structural integrity can safely handle the rated SWL.
Bronze bushings are exceptionally durable and are ideal for applications involving extremely heavy loads but relatively low rotational speeds; they excel in harsh environments where standard bearings might fail due to impact shocks. Shielded bearings, on the other hand, contain internal rolling elements protected from dust and debris, offering significantly lower friction for high-speed lifting operations, resulting in smoother, quieter, and more efficient mechanical movement.
