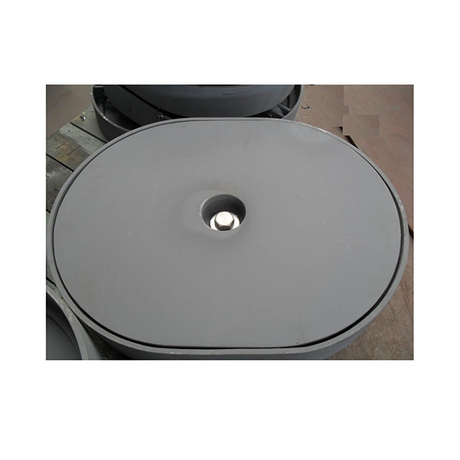

DF-464-5/144 Double-Layer Watertight Marine Hatch for Ships

Product Overview

As a premier marine equipment manufacturer and direct supplier, we engineer this double-layer watertight hatch to meet the rigorous demands of modern maritime operations. Designed with a unique upper and lower stacked configuration, this assembly guarantees superior weathertight integrity for complex cargo environments. Ideal for bulk carriers and multi-purpose vessels, our factory-direct hatch covers ensure rapid integration, exceptional durability, and long-term reliability for your entire fleet.

• Dual-layer stacked sealing configuration for maximum weather protection

• Classification society certified steel construction for superior strength

• Fully customizable dimensions, plate thickness, and sealing systems

• Optimized for dry and wet mixed cargo operations and heavy deck loads

Product Description

Navigating the unpredictable forces of the open ocean requires deck hardware that goes beyond standard compliance. This double-layer watertight marine hatch is meticulously engineered to provide an impenetrable barrier against harsh wind, driving rain, and surging waves. When securing the heavy-duty cast iron dog handles, operators can immediately feel the precise, firm engagement of the neoprene gaskets compressing against the steel coaming. This tactile feedback confirms the creation of an absolute seal that safeguards critical compartments. The smooth, anti-corrosive finish of the bronze tumble bolts ensures that even after months of relentless exposure to salt-laden sea spray, the locking mechanism operates with fluid, unyielding reliability.

Unlike conventional single-layer alternatives, this dual-structure design offers a highly sophisticated approach to cargo and compartment protection. The robust upper layer acts as a formidable shield against extreme weather events, while the lower layer provides exceptional load-bearing support for heavy deck cargo. This strategic physical separation allows vessel operators to confidently manage mixed dry and wet loads without ever compromising structural integrity. The satisfying, solid resonance of the steel cover locking firmly into place speaks directly to the exceptional craftsmanship poured into every unit. By upgrading to this advanced built-up hatch, maritime fleets significantly reduce moisture ingress risks, ensuring sensitive cargo arrives in pristine condition while simultaneously cutting down on routine maintenance cycles.

Product Specifications

Precision engineering dictates the performance and safety of every marine component. The following specifications detail the exact dimensions, weight, and material composition of the DF-464-5/144 model. Every measurement is strictly calibrated to ensure seamless installation and operational safety across a wide variety of vessel architectures. From the weather-resistant neoprene gaskets to the corrosion-resistant bronze hardware, each individual element is selected for its specific functional advantage in highly corrosive marine environments. Review the comprehensive technical parameters below to verify structural compatibility with your specific maritime project requirements.

Key Features & Highlights

Equipping your fleet with superior deck hardware translates directly to enhanced operational safety and drastically reduced vessel downtime. This hatch cover assembly integrates multiple advanced engineering principles to deliver unmatched reliability in the most demanding maritime scenarios.

• Dual-Layer Defense Mechanism: The innovative piggyback design creates a redundant sealing system, drastically reducing the risk of water ingress during heavy sea states and torrential downpours.

• Heavy-Duty Component Integration: Combining cast iron handles with premium bronze tumble bolts ensures that the locking mechanism remains completely seizure-free, even after prolonged exposure to corrosive saltwater.

• Optimized Deck Footprint: The intelligent stacked configuration minimizes the spatial footprint required for operation, freeing up valuable deck real estate for additional cargo stowage or equipment maneuverability.

• Rapid Actuation System: Engineered for swift opening and closing, the balanced weight distribution allows crew members to secure or access compartments with minimal physical strain.

• Zero-Compromise Weatherproofing: Utilizing dual weather-resistant neoprene gaskets, the hatch maintains its vital elastic memory and sealing integrity through extreme temperature fluctuations.

By focusing on the practical, everyday challenges faced by maritime crews, this hatch cover eliminates the common failure points found in standard marine closures, ensuring uninterrupted voyages and totally secure cargo holds.

Innovative Structure & Sealing Performance

Traditional single-layer covers often struggle to maintain their integrity under the immense hydrostatic pressure of crashing waves and hurricane-force winds. This product revolutionizes compartment protection through its upper and lower combined configuration and double-layer stacked sealing mechanism.

• Exceptional Pressure Resistance: The layered architecture distributes hydrostatic and aerodynamic loads evenly across the surface, preventing critical structural deformation under extreme environmental stress.

• Dry and Wet Cargo Versatility: The dual-barrier system allows for the highly efficient transport of mixed cargo types, ensuring that moisture-sensitive goods remain completely isolated from adjacent wet zones.

• High and Low Water Level Adaptability: Whether navigating deep ocean swells or shallow, unpredictable inland waterways, the redundant seals prevent ingress regardless of the external water line.

• Enhanced Compartment Isolation: The overlapping closure creates an airtight micro-environment, significantly reducing the risk of cross-contamination between adjacent holds and preserving cargo quality.

This structural innovation provides fleet operators with the ultimate confidence to navigate severe weather systems, knowing their internal compartments are sealed by a fail-safe, multi-tiered barrier.

Marine-Grade Material & Durability

The relentless assault of saltwater, intense UV radiation, and continuous mechanical wear demands materials of the absolute highest caliber. Every component of this hatch is forged, cast, or molded from marine-grade substances specifically chosen for their enduring resilience.

• Certified Steel Foundation: The main body, covers, and coamings are constructed from classification society certified steel, offering immense tensile strength and superior impact resistance against heavy deck loads.

• Corrosion-Defying Bronze Bolts: The six tumble bolts are precisely machined from high-grade bronze, effectively neutralizing galvanic corrosion and preventing the dangerous seizing of critical fasteners.

• Weather-Resistant Neoprene Gaskets: Both the large and small gaskets utilize premium neoprene, which actively resists degradation from ozone, salt spray, and petroleum products, maintaining a watertight compression seal year after year.

• Rugged Cast Iron and Steel Hardware: The dog handles and arm are cast for maximum structural rigidity, ensuring they will never bend or fracture under the high-torque application required for a watertight lock.

Investing in these uncompromising materials dramatically extends the lifecycle of your deck hardware, slashing the frequency of replacements and minimizing costly maintenance yard periods.

Vessel Adaptability & Wide Application

Fleet standardization requires equipment that can perform seamlessly across diverse vessel classes. This built-up hatch is engineered with universal adaptability in mind, making it the premier choice for widespread maritime application across global shipping routes.

• Multi-Purpose and Bulk Carriers: Easily handles the rigorous, high-impact loading and unloading cycles of bulk transport, protecting valuable commodities from the elements.

• Container Feeder Ships: Integrates smoothly into complex deck layouts where space is at a premium, without interfering with vital container lashing arrangements.

• Inland Barges and Offshore Platforms: Provides reliable, heavy-duty sealing for low-freeboard vessels and stationary rigs exposed to constant, punishing wave action.

• Seamless Retrofitting: Specifically designed to facilitate the rapid upgrading of older vessels. The structural footprint allows for the quick replacement of outdated single-layer hatches without the need for extensive hull modifications or costly hot work.

This cross-platform compatibility drastically simplifies procurement for large-scale fleet operators, ensuring a uniform standard of safety and performance across all maritime assets.

Space Optimization & Operational Efficiency

On a busy commercial deck, every square inch of space and every minute of operational time translates directly to profitability. The intelligent design of this double-layer hatch actively contributes to a significantly more efficient and spacious working environment.

• Stacked Storage Capability: The upper and lower covers are designed to nest securely together when opened, drastically reducing the required stowage footprint and keeping narrow walkways clear for safe crew movement.

• Accelerated Cargo Operations: By minimizing the physical space taken up by open hatches, port cranes and loading equipment have far greater maneuverability, speeding up vessel turnaround times.

• Multi-Mode Operation Compatibility: The structural framework is fully compatible with various actuation methods, ranging from traditional port lifting cranes to automated hydraulic opening and closing systems.

• Ergonomic Handling: Despite its heavy-duty construction, the balanced pivot points and strategically placed cast iron dog handles allow the crew to secure the hatch swiftly, reducing physical fatigue and accelerating pre-departure preparations.

By streamlining both space utilization and the physical mechanics of compartment access, this hatch serves as a powerful catalyst for overall operational efficiency.

Source Factory & Deep Customization

Off-the-shelf solutions rarely meet the exact, demanding specifications of specialized maritime projects. As a direct source manufacturer, we bypass intermediaries to offer unparalleled customization capabilities and direct-to-buyer value.

• Direct Manufacturer Pricing: By eliminating third-party markups, we provide premium marine hardware at highly competitive rates, maximizing your procurement budget without sacrificing quality.

• One-on-One Engineering Support: Our in-house design team collaborates directly with your naval architects to provide tailored drawing designs that perfectly match your vessel's unique structural requirements.

• Comprehensive Parameter Adjustments: We offer complete flexibility to modify dimensions, steel plate thickness, sealing configurations, and opening mechanisms to suit highly specific operational profiles.

• Scalable Production Capacity: Whether you require a single urgent replacement for a vessel in drydock or a massive bulk order for a new shipbuilding program, our flexible manufacturing lines guarantee timely, precise delivery.

Partnering directly with the factory ensures that every hatch cover is built exactly to your specifications, backed by a transparent, responsive, and highly capable supply chain.

Certification & Safety Compliance

In the maritime industry, safety is absolutely non-negotiable. Strict regulatory compliance is the foundation of our manufacturing process, ensuring that every hatch cover delivers uncompromising protection for the crew, the cargo, and the vessel itself.

• Classification Society Standards: Every unit is fabricated using steel that meets or exceeds the strict certification requirements of major international classification societies, ensuring global operational legality.

• Rigorous Quality Assurance: From initial raw material inspection to final hydrostatic pressure testing, our factory implements a stringent quality control matrix to guarantee zero-defect performance.

• Enhanced Seaworthiness: By exceeding standard weathertight testing parameters, this hatch cover provides a critical safety margin during extreme weather events and heavy rolling conditions.

• Reliable Procurement Backing: For shipyards, shipowners, and maritime engineering contractors, our certified manufacturing process provides the necessary documentation and safety endorsements required for swift insurance and registry compliance.

When you integrate our certified hatch covers into your fleet, you are investing in documented, verifiable safety that protects your valuable assets and your reputation on the global seas.

Why Choose Us

Selecting the right manufacturing partner for critical deck hardware is a strategic decision that directly impacts the long-term viability of your maritime assets. Our unyielding commitment to engineering excellence and client-focused service sets us apart in the global supply chain.

• Unrivaled Industry Expertise: With years of dedicated experience in advanced marine outfitting, we possess a deep, practical understanding of the complex challenges faced by modern shipping fleets.

• End-to-End Quality Control: As a direct manufacturer, we maintain absolute oversight of the entire production process, from the initial CAD drawings to the final anti-corrosive coating application.

• Global Logistics Proficiency: We have streamlined our export operations to ensure that bulk orders and urgent custom units are delivered swiftly and securely to shipyards and ports worldwide.

• Long-Term Partnership Approach: We do not just supply steel parts; we provide ongoing technical support, maintenance guidance, and highly responsive after-sales service to ensure your equipment performs flawlessly for decades.

By choosing our factory-direct solutions, you gain immediate access to superior craftsmanship, customized engineering, and a supply chain partner entirely dedicated to your operational success.

Frequently Asked Questions (FAQ)

To assist your procurement and engineering teams in making a fully informed decision, we have compiled detailed answers to the most common technical inquiries regarding our double-layer watertight hatch covers.

1. How does the double-layer sealing mechanism outperform standard single-layer hatches?

The double-layer system utilizes a robust upper cover for primary weather defense and a lower cover for structural load-bearing and secondary sealing. This built-in redundancy ensures that even if the primary seal is subjected to extreme, sustained wave impact, the secondary neoprene gasket maintains an absolute watertight barrier. This is crucial for protecting highly moisture-sensitive cargo and preventing compartment flooding.

2. Can the dimensions and material specifications be customized for older vessel retrofits?

Absolutely. As a direct source manufacturer, we specialize in non-standard customizations. Our engineering team can precisely adjust Dimension A, B, C, and the overall diameter, as well as upgrade plate thickness and sealing materials. This ensures a seamless, drop-in replacement for aging vessels without requiring extensive, costly hot work on the deck.

3. What maintenance is required for the bronze tumble bolts and cast iron dog handles?

Thanks to the inherent corrosion resistance of the bronze bolts and the heavy-duty cast iron construction, required maintenance is extremely minimal. We highly recommend a routine visual inspection of the neoprene gaskets for elasticity and a light application of marine-grade grease to the moving threads of the tumble bolts every six months. This guarantees smooth, tactile operation even in freezing or highly saline conditions.

4. Does this hatch cover comply with international maritime safety standards?

Yes. The main body, covers, and coamings are manufactured exclusively from classification society certified steel. Our entire production process adheres to rigorous international safety and weathertightness standards, providing you with the necessary compliance documentation required by major maritime registries, port authorities, and global insurance providers.

5. What is the typical lead time for bulk orders or urgent shipyard requests?

Because we operate our own state-of-the-art manufacturing facility, we completely bypass intermediary delays. For standard configurations, we maintain a strategic stock for rapid global deployment. For customized bulk orders or urgent drydock requirements, our flexible production lines allow us to significantly expedite manufacturing while maintaining strict quality control, ensuring your vessel project stays perfectly on schedule.
